Hydraulic & Pneumatic Cylinders

We are presently able to manufacture cylinders with a bore of upto 600 mm, strokes of upto 12 meters and a pressure rating of 500 bar.

The following types of cylinders can be manufactured:

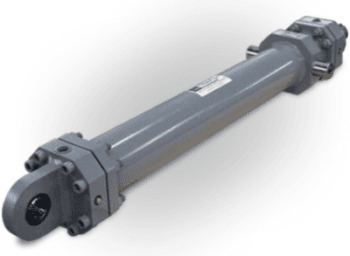

Mill – Duty Cylinders:

In this type of construction, the end cap and gland are bolted to the cylinder tube flanges.

Tie - Rod Cylinders:

In this type of construction, high strength threaded steel rods are used to hold the two end caps to the cylinder barrel. Tie rod style cylinders can be completely disassembled for service and repair.

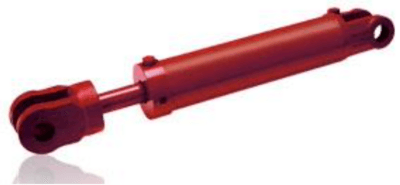

Welded Cylinders:

In this type of construction, the barrel is welded directly to the end caps. The ports are welded to the barrel. The front rod gland is usually threaded into or bolted to the cylinder barrel.
